High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

Shenzhen ZhaoWei Machinery & Electronics Co. Ltd.
Contact Now

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

Brand Name : Zhaowei

Model Number : ZWSD042042-100

Certification : CE/ROHS/ISO9001/ISO14001/SGS/TS16949

Place of Origin : China

MOQ : 5pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 600,000pcs per month

Delivery Time : 15 working days after payment

Packaging Details : packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing

Type : DC Gear Motor

Voltage : 12V 24v

Rated Load Speed : 52 rpm

Rated Load Current : 1679 mA

No Load Speed : 55rpm

No Load Current : 335 mA

Rated Load Torque : 18,813gf.cm

Gear ration : 100:1

Contact Now

zhaowei replace maxon 42mm 12v High Precision Low Noise Dc Gear Motor , Small Reducer Gearbox for medical equipment

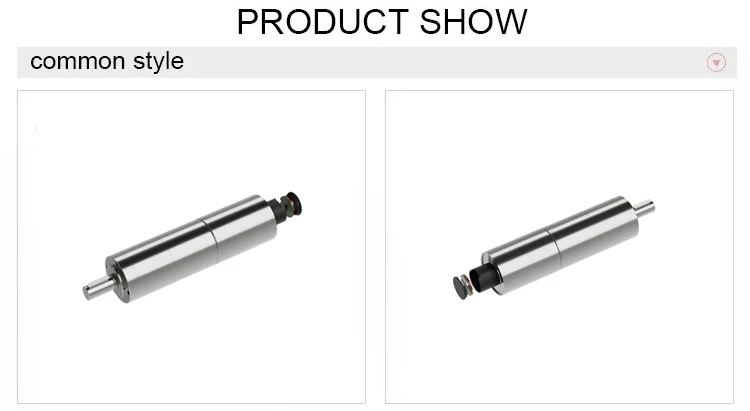

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

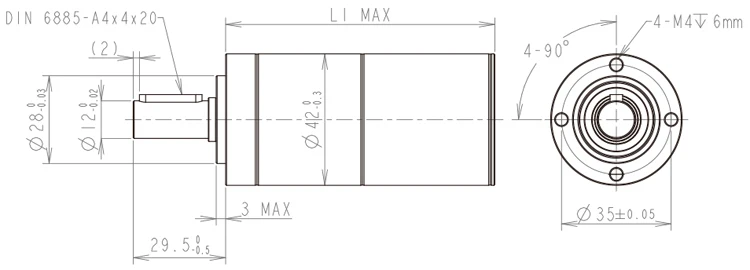

ZWSMD042042 42mm gearbox data
Gearbox number 1 2 3 4

Continuous output

torque (MAX)

4.5 3 5 6.3 Nm
Instant mobilization torque (MAX) 7 4 7 8 Nm
Reduction ratio 3.9,5.3 16/21/26/28/35

62/83/103/111/

138/150/172/186/213

243,326,406,439,546,590,679,734,

794,913,987,1135,1227,1526

/
Outer diameter 42mm mm
Gearbox length 47.8 67 86 104.5 mm
Maximum efficiency 96 93 90 87 %
Recommended temperature range -40~+100
Gearbox weight (MAX) 400 540 660 800 G
Maximum transmission power (continuous) 650 460 200 40 W
Air load average empty return 820 580 250 50 W
Air load average empty return 0.5 °
The maximum axial load (dynamic) 200 N
The maximum radial load (4mm from France) 350 525 750 750 N
Output Bearing Pearl bearing
Axial gap 0~0.1 mm
*Note: The above data does not include the motor, the overall sale of the deceased and the motor, the specific parameters can be customized according to the customer's requirements.

ZWSMD042042 42mm High performance brushless gearbox motor

Product advantages:
1-Version that can provide machine processing
2-Use high-performance material
3- Provide an improved version that can work in the temperature change range and special environmental conditions
4-can be improved according to customer requirements

ZWSMD042042 Motor Data High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device
Product model ZWSMD042042
Environmental temperature -40 ...+100 ℃
Maximum transmission power 650W
Maximum continuous torque 35nm
Maximum continuous input speed 6000RMPM
Output terminal bearing Rolling Pearl Bearing

#ZHAOWEI drives system to serve the innovation market
In 2024, we introduced new high-performance gear motors for medical, automotive, precision instruments, aerospace, industrial equipment and other demanding fields.
Product and process innovation and a consistently high level of expertise are the driving forces behind ZHAOWEI's success in demanding applications.

We can provide High-performance gearbox motor

6mm ,8mm,10mm,12mm,16mm,19mm,22mm,26mm,32mm,38mm,42mm



High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device
High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

Application:

Smart wearable devices watch,VR,AR,XR and etc.
Household application kitchen appliances, sewing machines, corn popper, vacuum cleaner, garden tool, sanitary ware, window curtain, intelligent closestool, sweeping robot, power seat, standing desk, electric sofa, TV, computer, treadmill, spyhole, cooker hood, electric drawer, electric mosquito net, intelligent cupboard, intelligent wardrobe, automatic soap dispenser, UV baby bottle sterilizer, lifting hot pot cookware, dishwasher, washing machine, food breaking machine, dryer, air conditioning, dustbin, coffee machine, whisk,smart lock,bread maker,Window cleaning robot and etc.
communication equipment 5G base station,video conference,mobile phone and etc.
Office automation equipments scanners, printers, multifunction machines copy machines, fax (FAX paper cutter), computer peripheral, bank machine, screen, lifting socket, display,notebook PC and etc.
Automotive products conditioning damper actuator, car DVD,door lock actuator, retractable rearview mirror, meters, optic axis control device, head light beam level adjuster, car water pump, car antenna, lumbar support, EPB, car tail gate electric putter, HUD, head-up display, vehicle sunroof, EPS, AGS, car window, head restraint, E-booster, car seat, vehicle charging station and etc.
Toys and models radio control model, automatic cruise control, ride-on toy, educational robot, programming robot, medical robot, automatic feeder, intelligent building blocks, escort robot and etc.
Medical equipments blood pressure meter, breath machine, medical cleaning pump, medical bed, blood pressure monitors, medical ventilator, surgical staplers, infusion pump, dental instrument, self-clotting cutter, wound cleaning pump for orthopedic surgery,electronic cigarette, eyebrow pencil,fascia gun, , surgical robot,laboratory automation and etc.
Industrials flow control valves, seismic testing,automatic reclosing,Agricultural unmanned aerial vehicle,automatic feeder ,intelligent express cabinet and etc.
Electric power tools electric drill, screwdriver,garden tool and etc.
Precision instruments optics instruments,automatic vending machine, wire-stripping machine and etc.
Personal care tooth brush, hair clipper, electric shaver, massager, vibrator, hair dryer, rubdown machine, scissor hair machine, foot grinder,anti-myopia pen, facial beauty equipment, hair curler,Electric threading knife,POWER PERFECT PORE, Puff machine,eyebrow tweezers and etc.
Consumer electronics camera, mobile phone,digital camera, automatic retracting device,camcorder, kinescope DVD,headphone stereo, cassette tape recorder, bluetooth earbud charging case, turntable, tablet,UAV(unmanned aerial vehicle),surveillance camera,PTZ camera, rotating smart speaker and etc.
robots educational robot, programming robot, medical robot, escort robot and etc.

Our Services
  • ODM & OEM
  • Gearbox design and development
  • Related technology support
Packaging & Shipping

1) Packing Details

packed in nylon firstly, then carton, and then reinforced with wooden case for outer packing.

Or according to client's requirement.

2) Shipping Details

samples will be shipped within 10 days;

batch order leading time according to the actual situation.

Company Information

Shenzhen ZHAOWEI Machinery & Electronics Co., Ltd was established in 2001,We provide the total drive solution for customers from design, tooling fabrication, components manufacturing and assembly.

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

1) Competitive Advantages

  • Years of experience in producing miniature motor gearboxes
  • We provide technical support from r&d, prototype, testing, assembly and serial production , ODM &OEM
  • Competitive Price
  • Product Performance: Low noise, High efficiency, Long lifespan
  • Prompt Delivery: 15 working days after payment
  • Small Orders Accepted

2) Main Products

  • Precision reduction gearbox and its diameter:3.4mm-38mm,voltage:1.5-24V,power: 0.01-40W,output speed:5-2000rpm and output torque:1.0 gf.cm -50kgf.cm,

  • Customized worm and gear transmission machinery;
  • Precise electromechanical motion module;
  • Precise component and assembly of plastic and metal powder injection.

Production&Equipment

High Precision 42mm Planetary Metal Gearbox 12v 24v Dc Gear Motor For Medical Device

FAQ

1. Can you make the gearbox with custom specifications?

YES. We have design and development team, also a great term of engineers, each of them have many work years experience.

2.Do you provide the samples?

YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.

3.What is your MOQ?

Our MOQ is 2000pcs. But at the beginning of our business, we accept small order.

4. Do you have the item in stock?

I am sorry we donot have the item in stock, All products are made with orders.

5. Do you provide technology support?

YES. Our company have design and development team, we can provide technology support if you need.

6.How to ship to us?

We will ship the goods to you according to the DHL or UPS or FEDEX etc account you provide.

7.How to pay the money?

We accept T/T in advance. Also we have different bank account for receiving money, like US dollors or RMB etc.

8. How can I know the product is suitable for me?

Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.

9. Can I come to your company to visit?

YES, you can come to our company to visit at anytime, and welcome to visit our company.

10. How do contact us ?

Please send an inquiry .
